Human SIRP alpha/CD172a Protein 4431

$270.00$900.00

Summary

  • Expression: HEK293
  • Functional: Yes (ELISA)
  • Amino Acid Range: Glu31-Arg370
SKU: 4431parent Categories: , Tag:
Weight1 lbs
Dimensions9 × 5 × 2 in
accession

P78324

express system

HEK293

product tag

C-hFc

purity

> 95% as determined by Tris-Bis PAGE;> 95% as determined by SEC-HPLC

background

Signal regulatory protein α (SIRPα) is a regulatory membrane glycoprotein from SIRP family expressed mainly by myeloid cells and also by stem cells or neurons.SIRPα acts as inhibitory receptor and interacts with a broadly expressed transmembrane protein CD47 also called the "don´t eat me" signal.Cancer cells highly expressed CD47 that activate SIRP α and inhibit macrophage-mediated destruction.

molecular weight

The protein has a predicted MW of 64.1 kDa. Due to glycosylation, the protein migrates to 78-90 kDa based on Tris-Bis PAGE result.

available size

100 µg, 500 µg

endotoxin

Less than 1EU per μg by the LAL method.

Human SIRP alpha/CD172a Protein 4431

protein
Size and concentration
100, 500µg and lyophilized
Form
Lyophilized
Storage Instructions
Valid for 12 months from date of receipt when stored at -80°C. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
Storage buffer
Shipped at ambient temperature.
Purity
> 95% as determined by Tris-Bis PAGE
target relevance
Signal regulatory protein α (SIRPα) is a regulatory membrane glycoprotein from SIRP family expressed mainly by myeloid cells and also by stem cells or neurons.SIRPα acts as inhibitory receptor and interacts with a broadly expressed transmembrane protein CD47 also called the "don´t eat me" signal.Cancer cells highly expressed CD47 that activate SIRP α and inhibit macrophage-mediated destruction.
Protein names
Tyrosine-protein phosphatase non-receptor type substrate 1 (SHP substrate 1) (SHPS-1) (Brain Ig-like molecule with tyrosine-based activation motifs) (Bit) (CD172 antigen-like family member A) (Inhibitory receptor SHPS-1) (Macrophage fusion receptor) (MyD-1 antigen) (Signal-regulatory protein alpha-1) (Sirp-alpha-1) (Signal-regulatory prot
Mass
54967Da
Function
Immunoglobulin-like cell surface receptor for CD47. Acts as docking protein and induces translocation of PTPN6, PTPN11 and other binding partners from the cytosol to the plasma membrane. Supports adhesion of cerebellar neurons, neurite outgrowth and glial cell attachment. May play a key role in intracellular signaling during synaptogenesis and in synaptic function (By similarity). Involved in the negative regulation of receptor tyrosine kinase-coupled cellular responses induced by cell adhesion, growth factors or insulin. Mediates negative regulation of phagocytosis, mast cell activation and dendritic cell activation. CD47 binding prevents maturation of immature dendritic cells and inhibits cytokine production by mature dendritic cells. Plays a role in antiviral immunity and limits new world arenavirus infection by decreasing virus internalization (By similarity). Receptor for THBS1 (PubMed:24511121). Interaction with THBS1 stimulates phosphorylation of SIRPA (By similarity). In response to THBS1, involved in ROS signaling in non-phagocytic cells, stimulating NADPH oxidase-derived ROS production (PubMed:24511121). {ECO:0000250, ECO:0000250|UniProtKB:P97710, ECO:0000269|PubMed:10469599, ECO:0000269|PubMed:11509594, ECO:0000269|PubMed:24511121}.
Subellular location
Membrane; Single-pass type I membrane protein.
Tissues
Ubiquitous. Highly expressed in brain. Detected on myeloid cells, but not T-cells. Detected at lower levels in heart, placenta, lung, testis, ovary, colon, liver, small intestine, prostate, spleen, kidney, skeletal muscle and pancreas.
Structure
Binds PTPN11 when tyrosine-phosphorylated, except in macrophages, where it primarily binds PTPN6. Binds GRB2 in vitro. Binds FGR (By similarity). Binds JAK2 irrespective of its phosphorylation status and forms a stable complex. Binds SCAP1 and/or SCAP2. The resulting complex recruits FYB1. Binds PTK2B. Interacts with TRIM2 (By similarity). {ECO:0000250, ECO:0000269|PubMed:18657508, ECO:0000269|PubMed:24511121}.
Post-translational modification
N-glycosylated. {ECO:0000269|PubMed:16335952, ECO:0000269|PubMed:19159218, ECO:0000269|PubMed:9062191}.; Phosphorylated on tyrosine residues in response to stimulation with EGF, growth hormone, insulin and PDGF. Dephosphorylated by PTPN11. {ECO:0000269|PubMed:10842184, ECO:0000269|PubMed:9062191}.
Target Relevance information above includes information from UniProt accession: P78324
The UniProt Consortium

Data

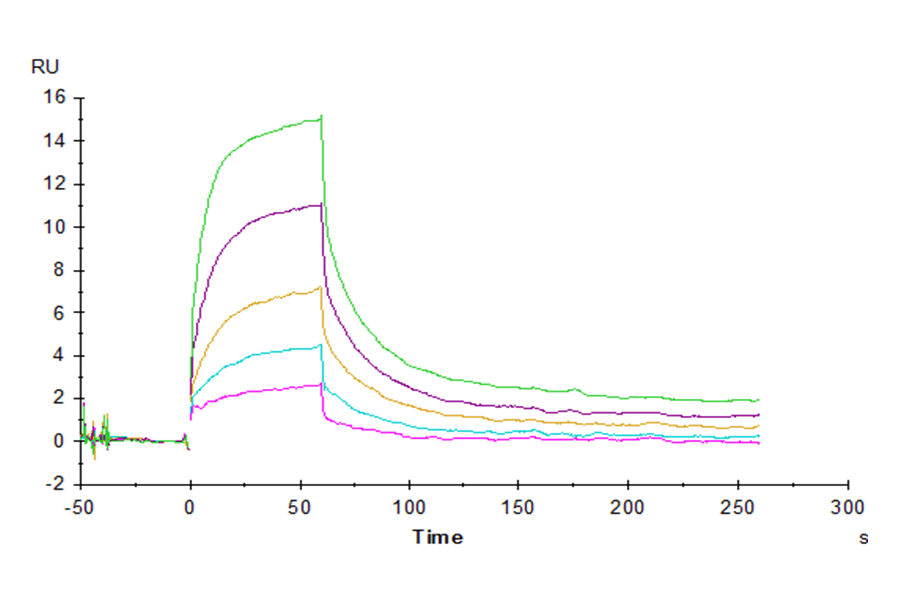

SPR with Human SIRP alpha/CD172a Protein
Human CD47, His Tag captured on CM5 Chip via Anti-His Antibody can bind Human SIRP alpha, hFc Tag with an affinity constant of 18.9nM as determined in SPR assay (Biacore T200).

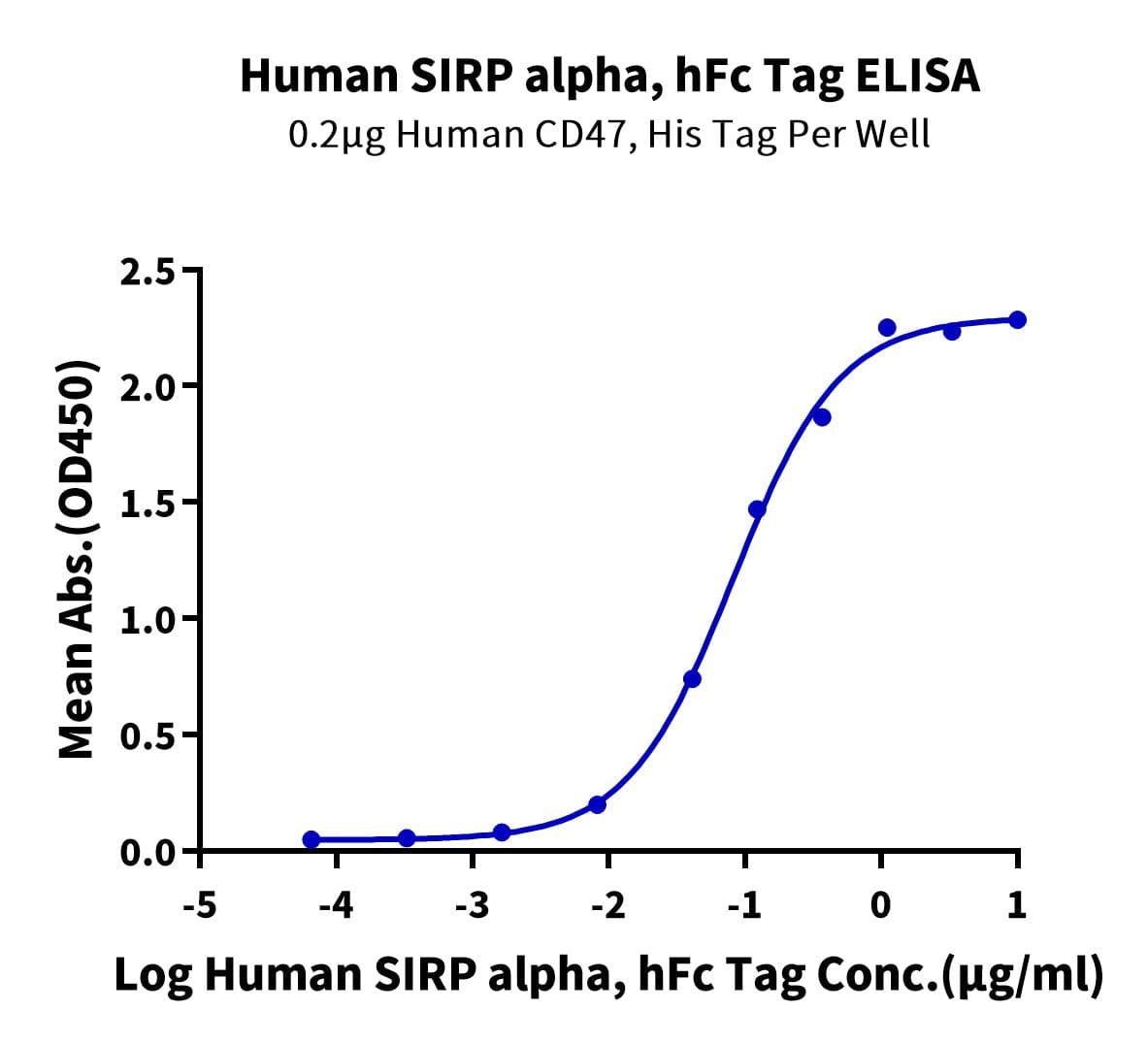

ELISA with Human SIRP alpha/CD172a Protein
Immobilized Human CD47, His Tag at 2µg/ml (100µl/Well) on the plate. Dose response curve for Human SIRP alpha, hFc Tag with the EC50 of 82.1ng/ml determined by ELISA (QC Test).

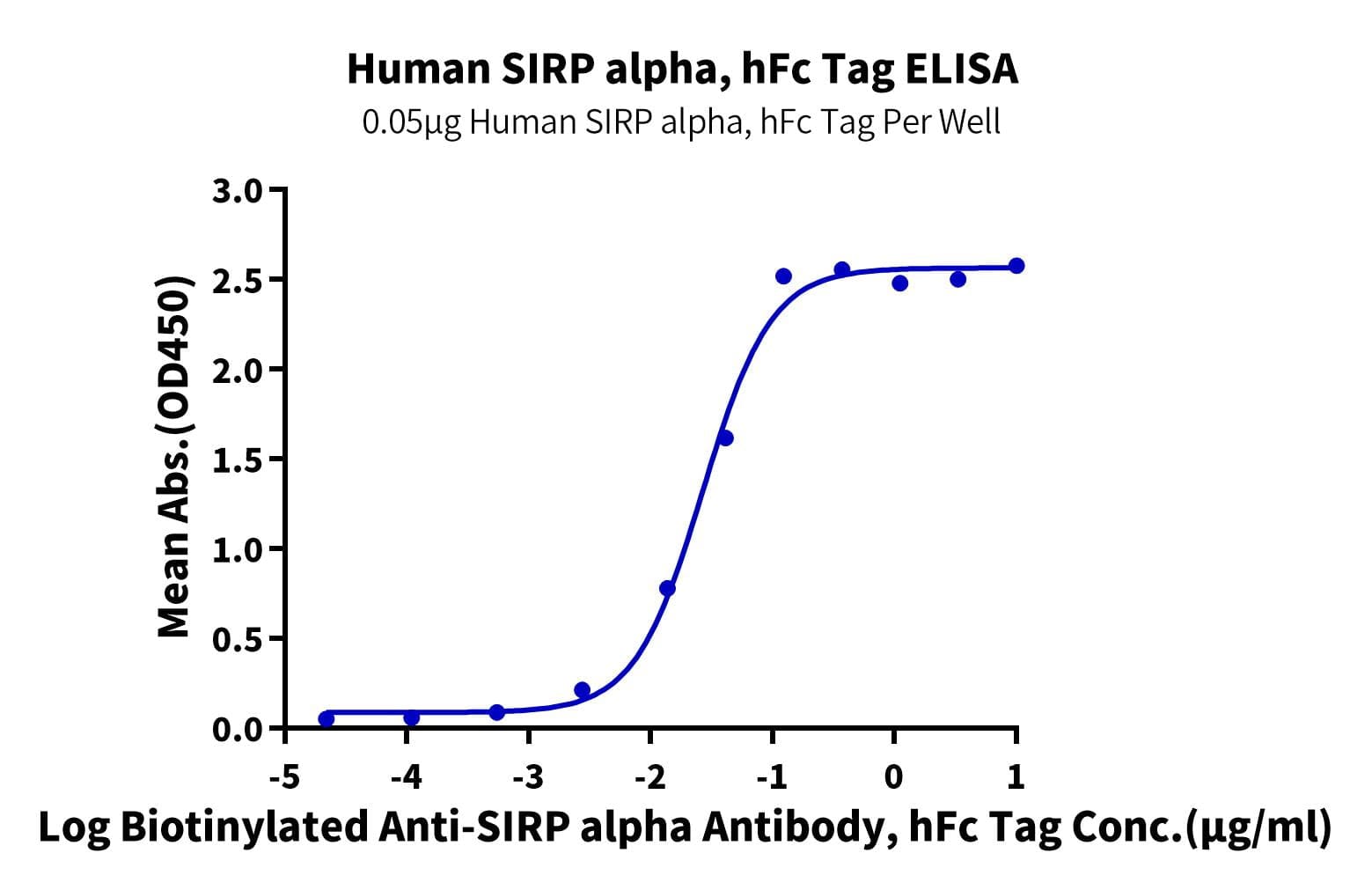

ELISA with Human SIRP alpha/CD172a Protein
Immobilized Human SIRP alpha, hFc Tag at 0.5µg/ml (100µl/Well) on the plate. Dose response curve for Biotinylated Anti-SIRP alpha Antibody, hFc Tag with the EC50 of 26.9ng/ml determined by ELISA.

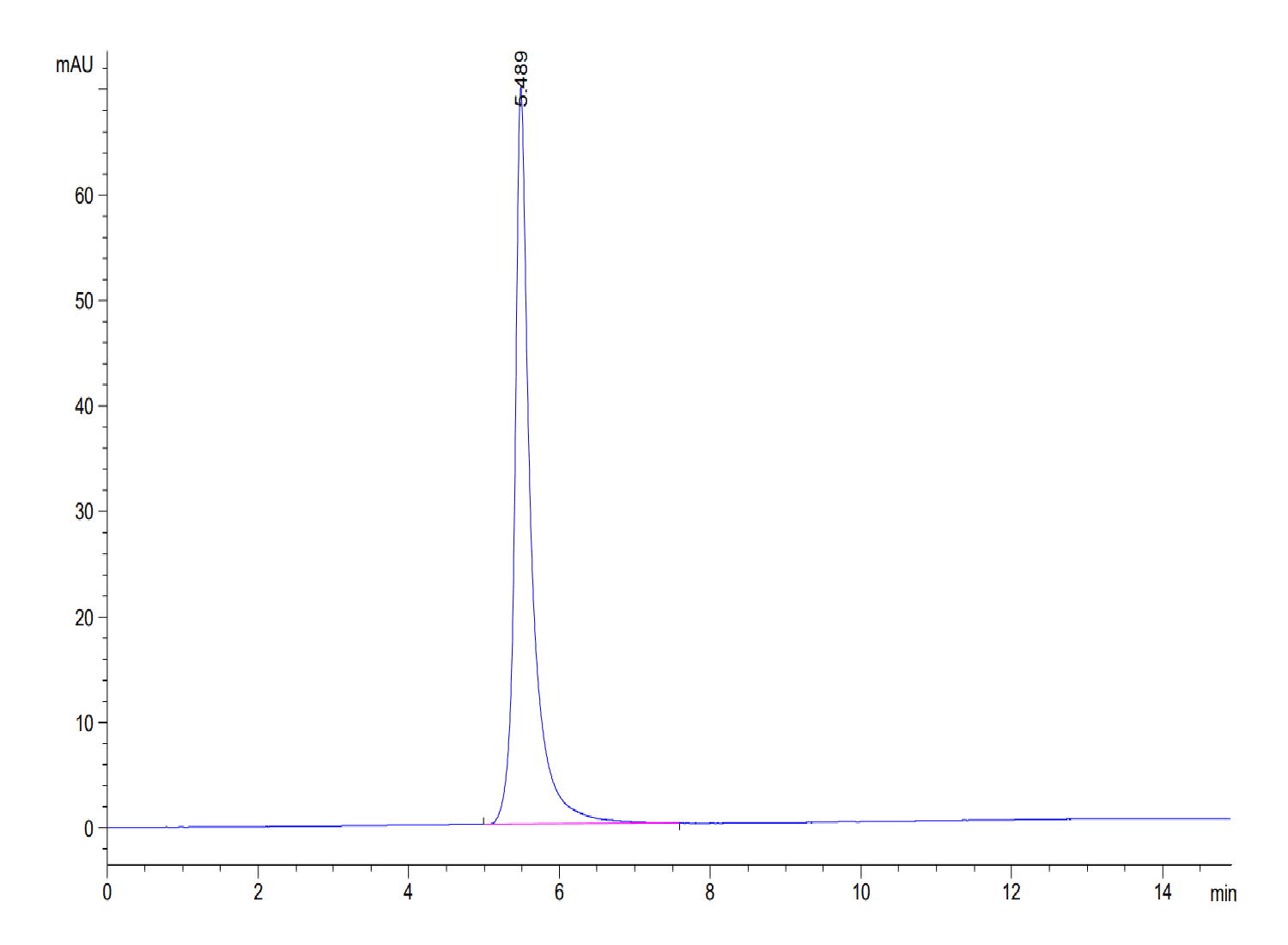

HPLC of Human SIRP alpha/CD172a Protein
The purity of SIRP alpha is greater than 95% as determined by SEC-HPLC.

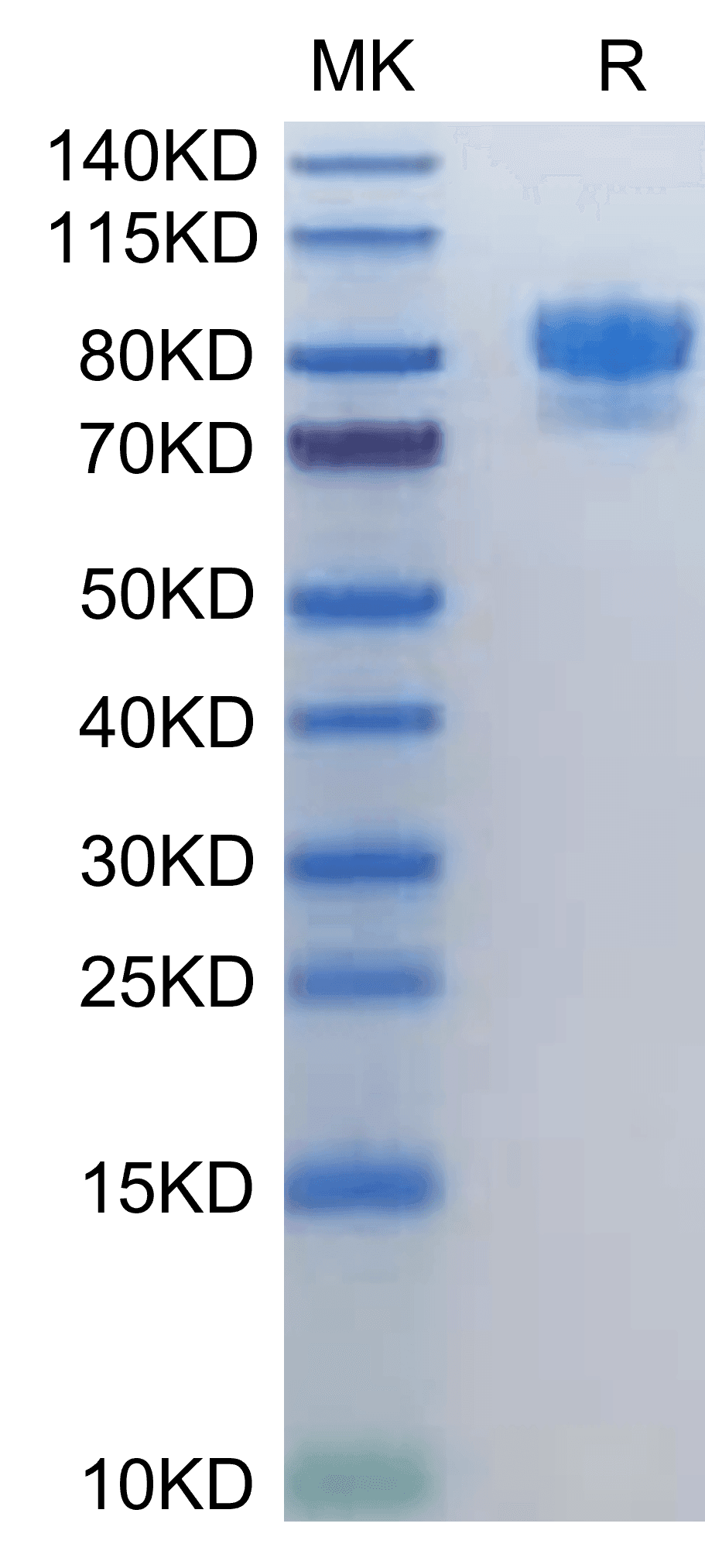

SDS-PAGE gel of Human SIRP alpha/CD172a Protein
Human SIRP alpha on Tris-Bis PAGE under reduced condition. The purity is greater than 95%.
