ELISA with Human NKG2A&CD94 Protein 4731

Binding assay with Human NKG2A&CD94 Protein 4731

Human NKG2A&CD94 Protein 4731

$315.00 – $1,050.00

Summary

Expression: HEK293
Functional: Yes (binding assay)
Amino Acid Range: Arg100-Leu233(NKG2A) & Ser34-Ile179(CD94)

SKU: 4731parent Categories: proteins, Recombinant proteins Tag: active proteins

Weight	1 lbs
Dimensions	9 × 5 × 2 in
accession	P26715(NKG2A)&Q13241(CD94)
express system	HEK293
product tag	N-His-Avi
purity	> 95% as determined by Tris-Bis PAGE;> 95% as determined by HPLC
background	The ligand-receptor assignment between HLA-G and NKG2A/CD94 is dependent of the amino acid composition in the HLA-G heavy chain. Understanding the biophysical basis of receptor-mediated events that lead to NK cell inhibition would help to remove non-tumor reactive cells and support personalized mild autologous NK cell therapies.
molecular weight	The protein has a predicted MW of 17.9 kDa (CD94)&18.3 kDa (NKG2A). Due to glycosylation, the protein migrates to 33-48 kDa based on Tris-Bis PAGE result.
available size	100 µg, 500 µg
endotoxin	Less than 1EU per μg by the LAL method.

Human NKG2A&CD94 Protein 4731

protein

Size and concentration 100, 500µg and lyophilized
Form Lyophilized
Storage Instructions Valid for 12 months from date of receipt when stored at -80°C. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
Storage buffer Shipped at ambient temperature.
Purity > 95% as determined by Tris-Bis PAGE

target relevance
The ligand-receptor assignment between HLA-G and NKG2A/CD94 is dependent of the amino acid composition in the HLA-G heavy chain. Understanding the biophysical basis of receptor-mediated events that lead to NK cell inhibition would help to remove non-tumor reactive cells and support personalized mild autologous NK cell therapies.
Protein names NKG2-A/NKG2-B type II integral membrane protein (CD159 antigen-like family member A) (NK cell receptor A) (NKG2-A/B-activating NK receptor) (CD antigen CD159a)
Gene names KLRC1,KLRC1 NKG2A
Mass 26314Da
Function Immune inhibitory receptor involved in self-nonself discrimination. In complex with KLRD1 on cytotoxic and regulatory lymphocyte subsets, recognizes non-classical major histocompatibility (MHC) class Ib molecule HLA-E loaded with self-peptides derived from the signal sequence of classical MHC class Ia molecules. Enables cytotoxic cells to monitor the expression of MHC class I molecules in healthy cells and to tolerate self (PubMed:18083576, PubMed:37264229, PubMed:9430220, PubMed:9486650). Upon HLA-E-peptide binding, transmits intracellular signals through two immunoreceptor tyrosine-based inhibition motifs (ITIMs) by recruiting INPP5D/SHP-1 and INPPL1/SHP-2 tyrosine phosphatases to ITIMs, and ultimately opposing signals transmitted by activating receptors through dephosphorylation of proximal signaling molecules (PubMed:12165520, PubMed:9485206). Key inhibitory receptor on natural killer (NK) cells that regulates their activation and effector functions (PubMed:30860984, PubMed:9430220, PubMed:9485206, PubMed:9486650). Dominantly counteracts T cell receptor signaling on a subset of memory/effector CD8-positive T cells as part of an antigen-driven response to avoid autoimmunity (PubMed:12387742). On intraepithelial CD8-positive gamma-delta regulatory T cells triggers TGFB1 secretion, which in turn limits the cytotoxic programming of intraepithelial CD8-positive alpha-beta T cells, distinguishing harmless from pathogenic antigens (PubMed:18064301). In HLA-E-rich tumor microenvironment, acts as an immune inhibitory checkpoint and may contribute to progressive loss of effector functions of NK cells and tumor-specific T cells, a state known as cell exhaustion (PubMed:30503213, PubMed:30860984).; (Microbial infection) Viruses like human cytomegalovirus have evolved an escape mechanism whereby virus-induced down-regulation of host MHC class I molecules is coupled to the binding of viral peptides to HLA-E, restoring HLA-E expression and inducing HLA-E-dependent NK cell immune tolerance to infected cells. Recognizes HLA-E in complex with human cytomegalovirus UL40-derived peptide (VMAPRTLIL) and inhibits NK cell cytotoxicity.; (Microbial infection) May recognize HLA-E in complex with HIV-1 gag/Capsid protein p24-derived peptide (AISPRTLNA) on infected cells and may inhibit NK cell cytotoxicity, a mechanism that allows HIV-1 to escape immune recognition.; (Microbial infection) Upon SARS-CoV-2 infection, may contribute to functional exhaustion of cytotoxic NK cells and CD8-positive T cells (PubMed:32203188, PubMed:32859121). On NK cells, may recognize HLA-E in complex with SARS-CoV-2 S/Spike protein S1-derived peptide (LQPRTFLL) expressed on the surface of lung epithelial cells, inducing NK cell exhaustion and dampening antiviral immune surveillance (PubMed:32859121).
Subellular location Cell membrane ; Single-pass type II membrane protein .
Tissues Predominantly expressed in NK cells (at protein level) (PubMed:20952657, PubMed:9430220, PubMed:9485206). Expressed in intraepithelial CD8-positive T cell subsets with higher frequency in gamma-delta T cells than alpha-beta T cells (at protein level) (PubMed:18064301). Expressed in memory gamma-delta T cells (at protein level) (PubMed:20952657). Restricted to a subset of memory/effector CD8-positive alpha-beta T cells (at protein level) (PubMed:12387742). Expressed in intratumoral NK and CD8-positive T cells (PubMed:30503213). Expressed in melanoma-specific cytotoxic T cell clones (at protein level) (PubMed:9485206). KLRD1-KLRC1 and KLRD1-KLRC2 are differentially expressed in NK and T cell populations, with only minor subsets expressing both receptor complexes (at protein level) (PubMed:20952657).
Structure Heterodimer with KLRD1; disulfide-linked (PubMed:18083576, PubMed:18332182, PubMed:18448674). KLRD1-KLRC1 heterodimer interacts with peptide-bound HLA-E-B2M heterotrimeric complex (PubMed:18083576). Competes with KLRC2 for its interaction with HLA-E (PubMed:18083576). Interacts (via ITIM) with INPP5D/SHIP-1 and INPPL1/SHIP-2 (via SH2 domain).
Post-translational modification Phosphorylated.
Domain The cytosolic N-terminus contains two immunoreceptor tyrosine-based inhibitory motifs (ITIMs
Target Relevance information above includes information from UniProt accession: P26715
The UniProt Consortium

Data

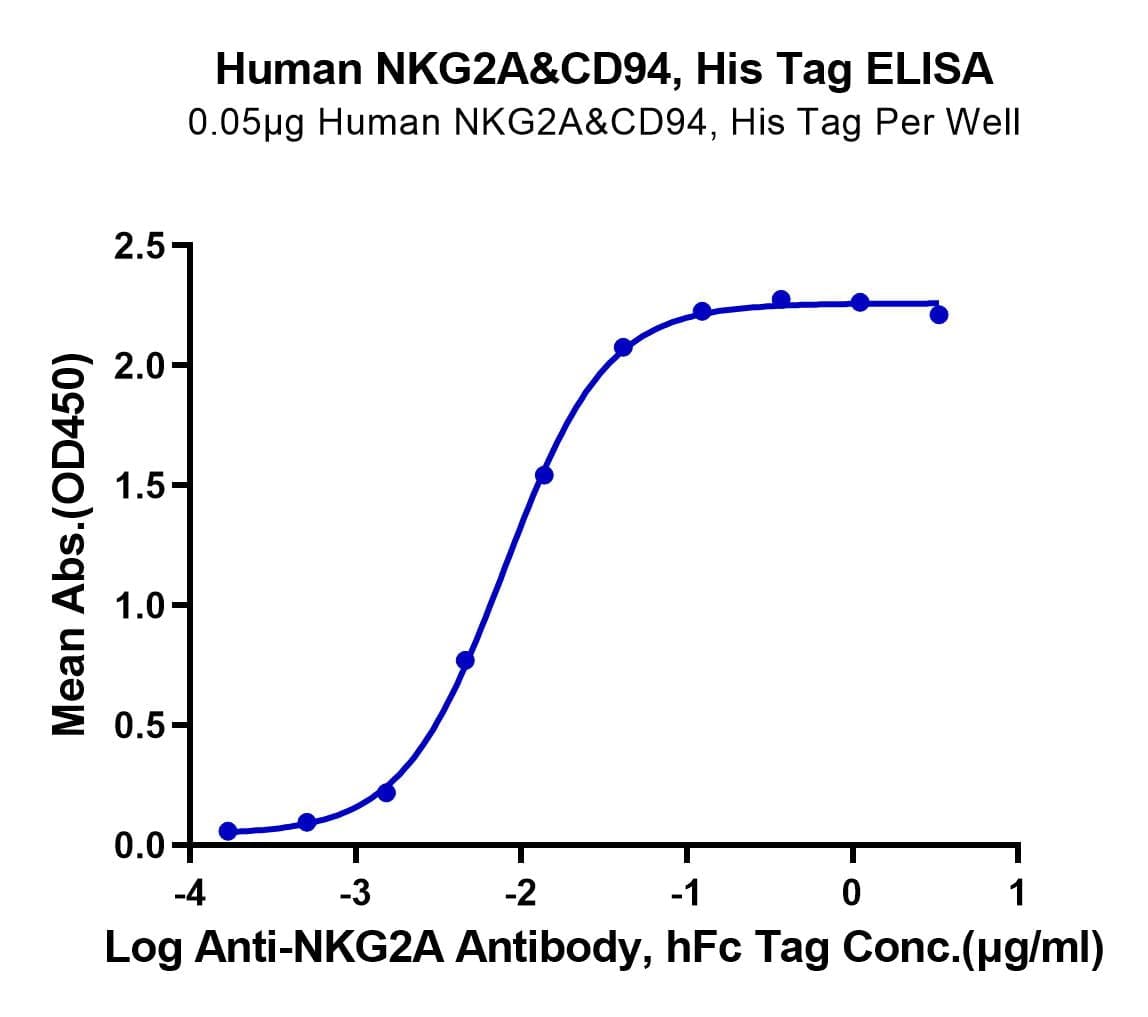

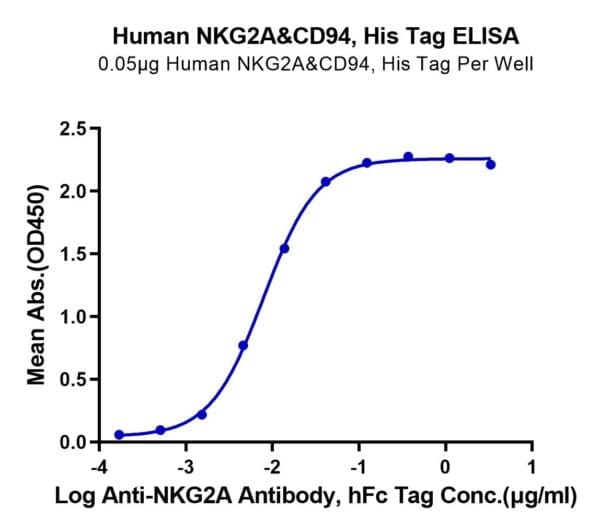

Immobilized Human NKG2A&CD94, His Tag at 0.5µg/ml (100µl/Well) on the plate. Dose response curve for Anti-NKG2A Antibody, hFc Tag with the EC50 of 7.9ng/ml determined by ELISA.

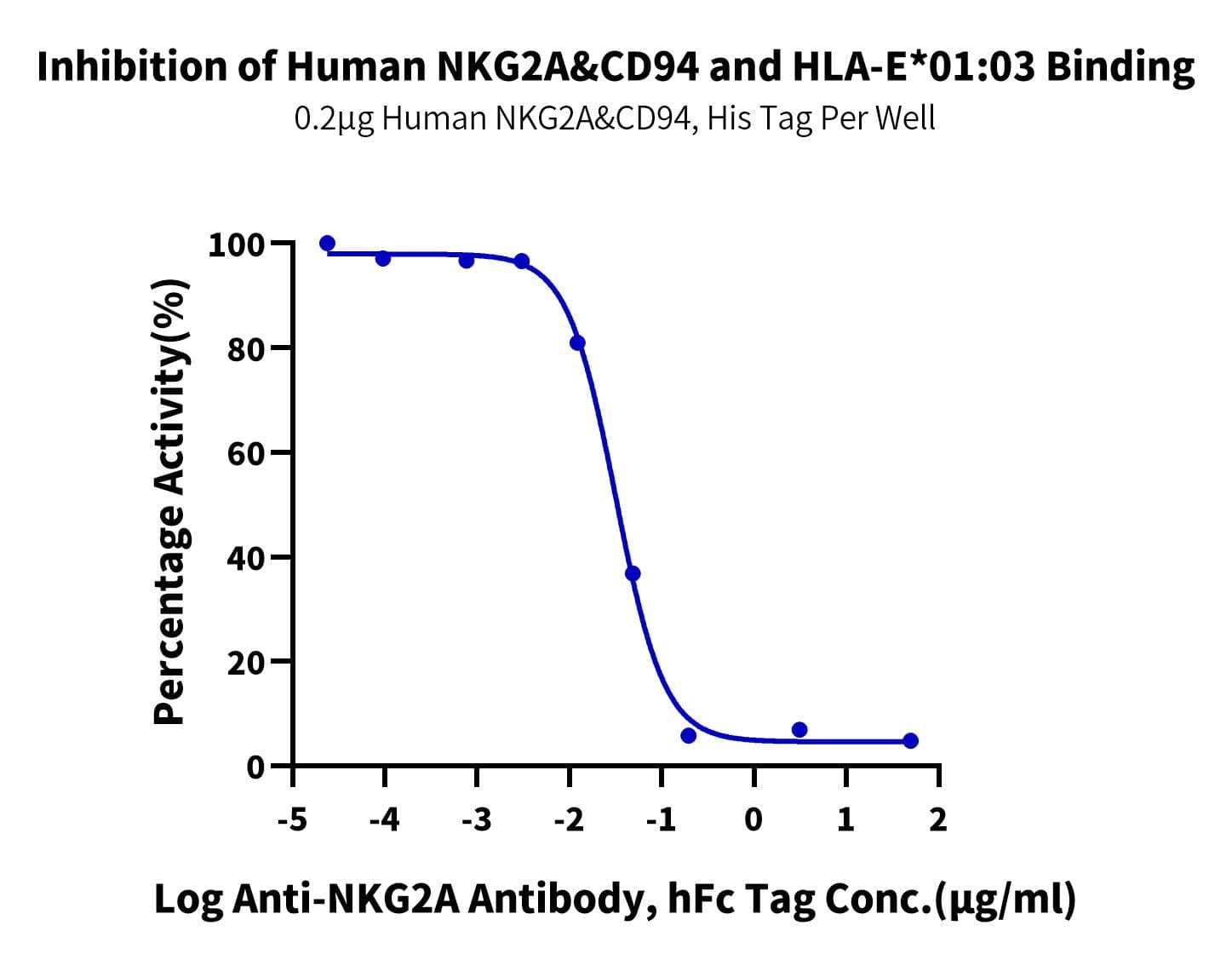

Binding assay with Human NKG2A&CD94 Protein

Serial dilutions of Anti-NKG2A Antibody, hFc Tag were added into Human NKG2A&CD94, His Tag : Biotinylated Human HLA-E*01:03 Complex Tetramer, His Tag binding reactioins. The half maximal inhibitiory concentration (IC50) is 31.8ng/ml.

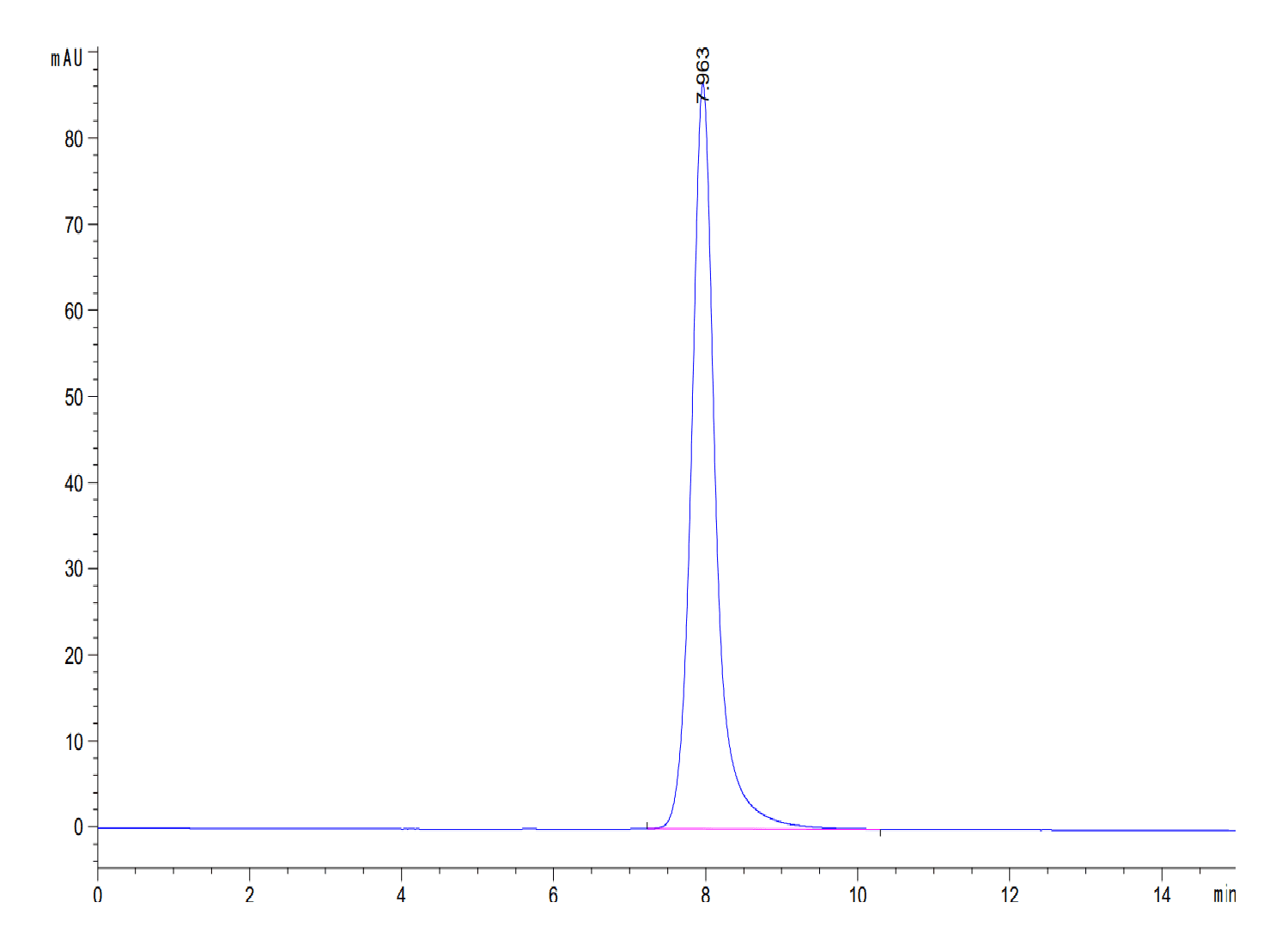

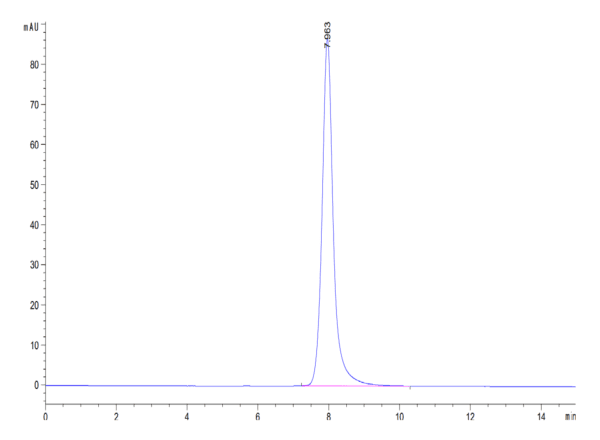

The purity of Human NKG2A&CD94 is greater than 95% as determined by SEC-HPLC.

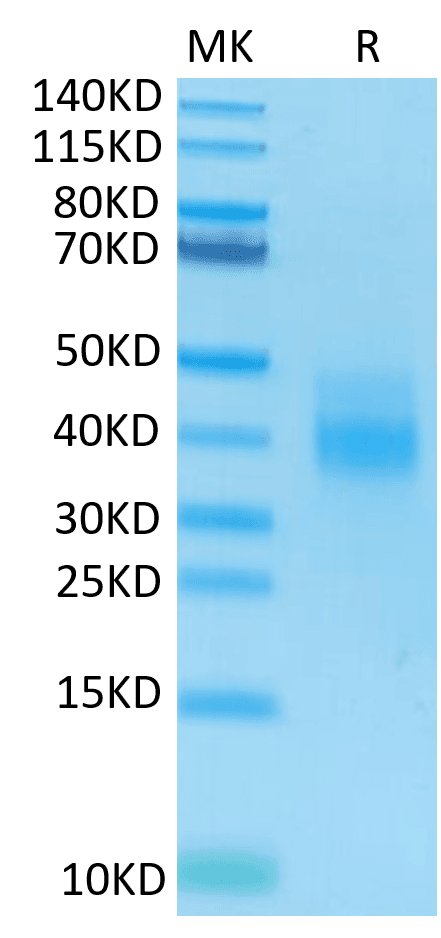

SDS-PAGE gel of Human NKG2A&CD94 Protein

Human NKG2A&CD94 on Tris-Bis PAGE under reduced condition. The purity is greater than 95%.
