SPR with Cynomolgus DNAM-1/CD226 Protein 4266

ELISA with Cynomolgus DNAM-1/CD226 Protein 4266

Cynomolgus DNAM-1/CD226 Protein 4266

$315.00 – $1,050.00

Summary

Expression: HEK293
Functional: Yes (ELISA)
Amino Acid Range: Glu19-Phe252

SKU: 4266parent Categories: proteins, Recombinant proteins Tag: active proteins

Weight	1 lbs
Dimensions	9 × 5 × 2 in
accession	A0A2K5W1Z6
express system	HEK293
product tag	C-His
purity	> 95% as determined by Tris-Bis PAGE;> 95% as determined by HPLC
background	DNAX accessory molecule-1 (DNAM-1), also known as CD226, is a 65 kDa type I transmembrane glycoprotein in the immunoglobulin superfamily.DNAM-1 mediates cellular adhesion to other cells bearing its ligands, CD112 and CD155, and cross-linking DNAM-1 with antibodies causes cellular activation. Furthermore, DNAM-1 can interact with PVR and PVRL2.
molecular weight	The protein has a predicted MW of 27.7 kDa. Due to glycosylation, the protein migrates to 48-68 kDa based on Tris-Bis PAGE result.
available size	100 µg, 500 µg
endotoxin	Less than 1EU per μg by the LAL method.

Cynomolgus DNAM-1/CD226 Protein 4266

protein

Size and concentration 100, 500µg and lyophilized
Form Lyophilized
Storage Instructions Valid for 12 months from date of receipt when stored at -80°C. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
Storage buffer Shipped at ambient temperature.
Purity > 95% as determined by Tris-Bis PAGE

target relevance
DNAX accessory molecule-1 (DNAM-1), also known as CD226, is a 65 kDa type I transmembrane glycoprotein in the immunoglobulin superfamily.DNAM-1 mediates cellular adhesion to other cells bearing its ligands, CD112 and CD155, and cross-linking DNAM-1 with antibodies causes cellular activation. Furthermore, DNAM-1 can interact with PVR and PVRL2.
Protein names CD226 molecule
Gene names CD226,CD226
Mass 38545Da
Target Relevance information above includes information from UniProt accession: A0A2K5W1Z6
The UniProt Consortium

Data

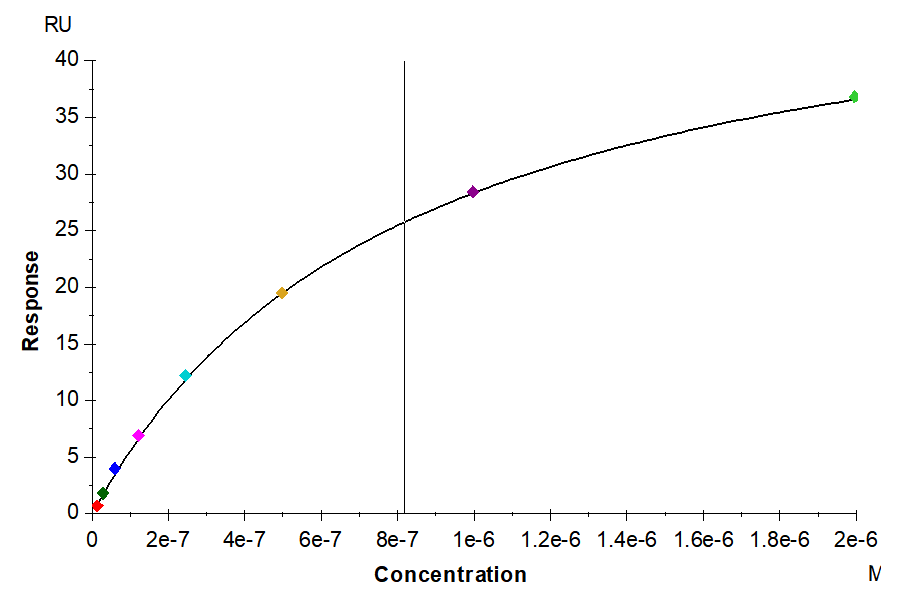

SPR with Cynomolgus DNAM-1/CD226 Protein

Human CD155, hFc Tag captured on CM5 Chip via Protein A can bind Cynomolgus DNAM-1, His Tag with an affinity constant of 0.82 µM as determined in SPR assay (Biacore T200).

ELISA with Cynomolgus DNAM-1/CD226 Protein

Immobilized Cynomolgus DNAM-1, hFc Tag at 5µg/ml (100µl/Well) on the plate. Dose response curve for Human CD155, mFc Tag with the EC50 of 1.63µg/ml determined by ELISA (QC Test).

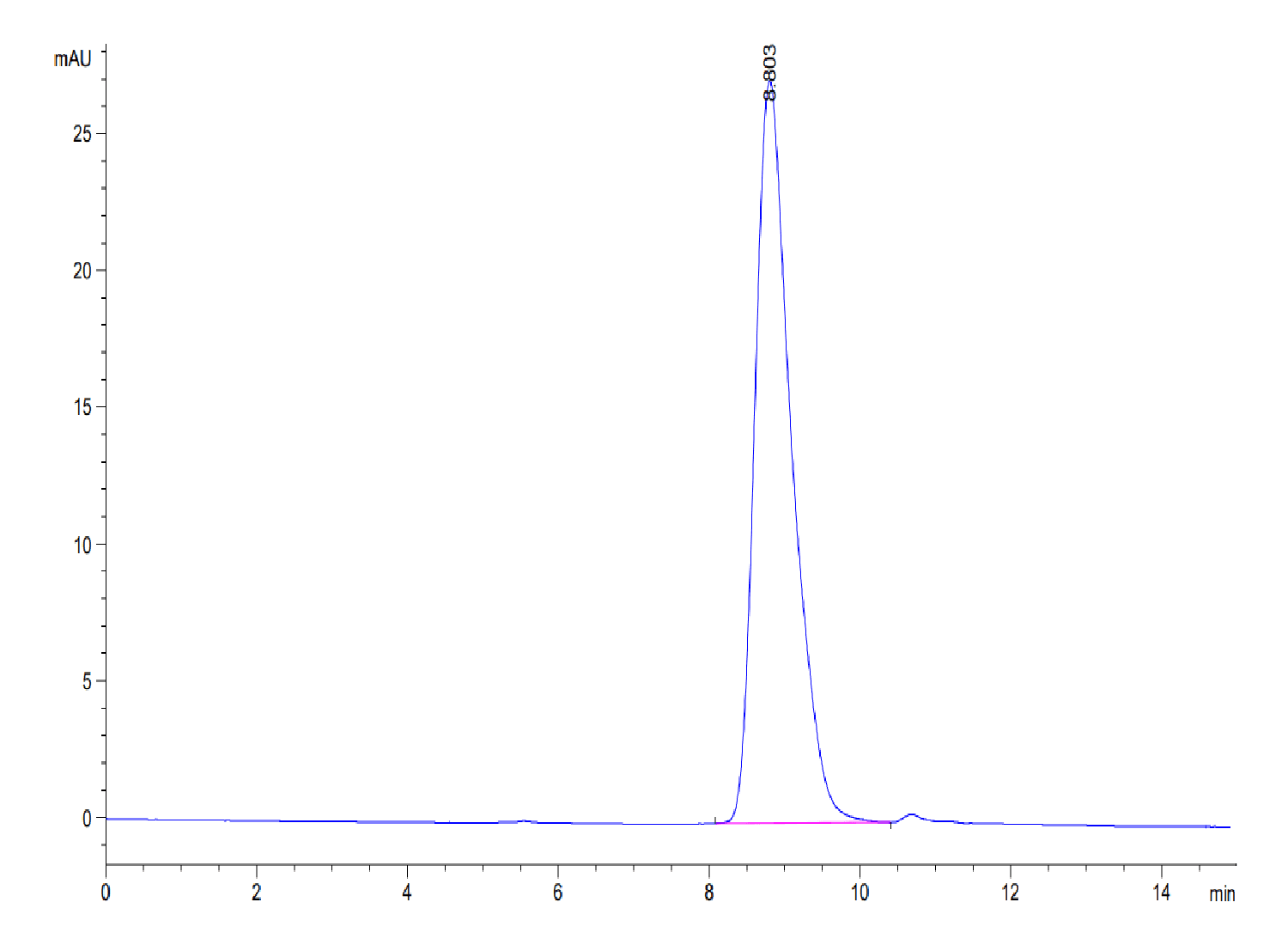

The purity of Cynomolgus DNAM-1 is greater than 95% as determined by SEC-HPLC.

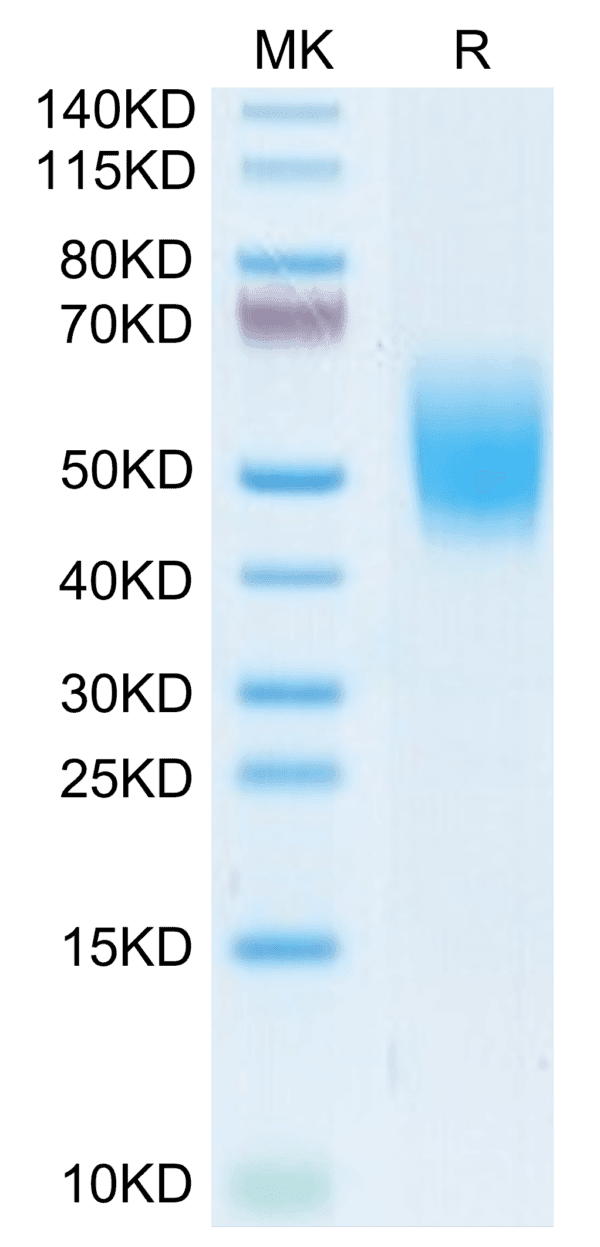

SDS-PAGE gel of Cynomolgus DNAM-1/CD226 Protein

Cynomolgus DNAM-1 on Tris-Bis PAGE under reduced condition. The purity is greater than 95%.
